Press Brake

This product has been discontinued and removed from our shelves.

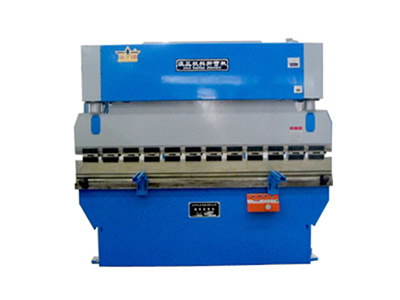

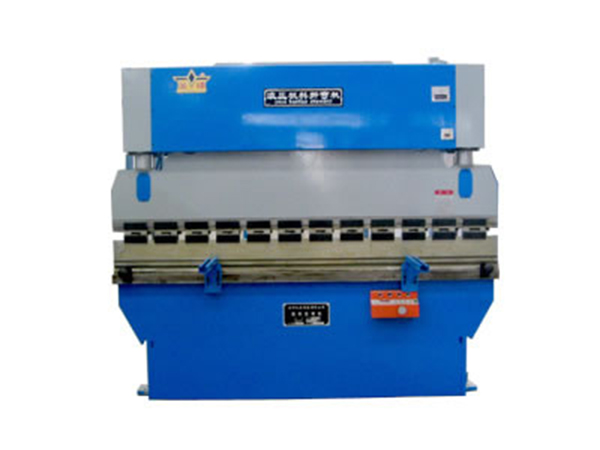

Characteristics of WC67Y series Hydraulic Press Brake

• Our WC67Y series hydraulic press brake is designed with all steel welded structure and the stress can be removed by vibration, so it has the features of high mechanical strength and good rigidity.
• This press brake is equipped with stable hydraulic drive system which is quite reliable.
• Slide block synchronization mechanism adopts torsion bar forced synchronization.
• Back gauge distance and upper slide block stroke can be adjusted through motor-driven way or finely adjusted manually. The adjusting value can be shown on the digital display.
• Our hydraulic press brake is equipped with deflection compensation mechanism on the upper die. The machine tool that is larger than 250tons and longer than 4000mm can be designed with deflection compensation mechanism on the lower die.

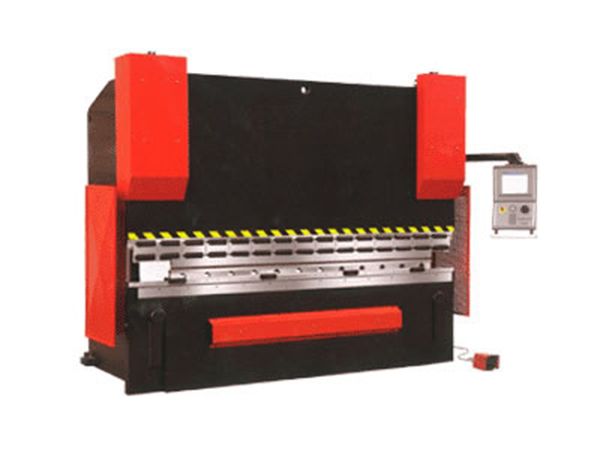

Characteristics of WC67K series CNC Double-Cylinder Press Brake

• The mainframe of WC67K series CNC double-cylinder press brake is WC65Y series press brake.
• The numerical control system of this CNC double-cylinder press brake is supplied by DELEM Company.
• The back gauge displacement and slide block stroke are both automatically controlled by computer.
• The back gauge of this press brake adopts ordinary screw mandrel and precision ball screw mandrel to eliminate the transmission clearance.

Characteristics of WC67K series Double Unit Linked Press Brake

• WC67K series press brake adopts double-cylinder or three-cylinder mainframe of the same specification. It is equipped with double unit linked synchronization device.
• Double unit linked press brake can be used to process super-long work pieces, such as lamp post and power line pole. It is quite suitable for city construction and highway construction.
• The two linked press brakes can also be used separately, so as to improve production efficiency.
• Your special requirement can be satisfied.

Press Brake
A press brake, also called brake press, is a machine tool used to bend sheet and plate material, especially sheet metal. According to different means of applying force, just brakes fall into mechanical press brakes, pneumatic press brakes, hydraulic press brakes and servo-electric press brakes. The mostly commonly used press brakes are CNC press brakes and hydraulic press brakes. As a professional press brake manufacturer in China, we can produce WC67Y series hydraulic press brakes, WC67K series CNC double-cylinder press brakes and WC67K series double unit linked press brakes.

Aside from press brakes, we also offer fertilizer equipment, ball mills, rotary kilns, pulse bag dust collectors, etc. All these products are made from high quality raw materials. They are now sold to Singapore, Indonesia, India, Malaysia, Pakistan, Iran, Turkey, Nigeria and more.

All of our products come with 12-month warranty. Within the warranty period, we can help install and debug the equipment, train your operators and provide maintenance service for you. Additionally, we can provide OEM service for our customers.

We have obtained ISO9001:2000 certification and ISO9001:2008 certification, so you can feel secure in using our press brakes, cement equipment, shearing machines, etc.

Furthermore, we are surrounded by highways and sea ports. This will facilitate the transport of your goods as well as reduce your transportation cost.

Please feel free to contact us if you have any problem.
