Plate Rolling Machine

This product has been discontinued and removed from our shelves.

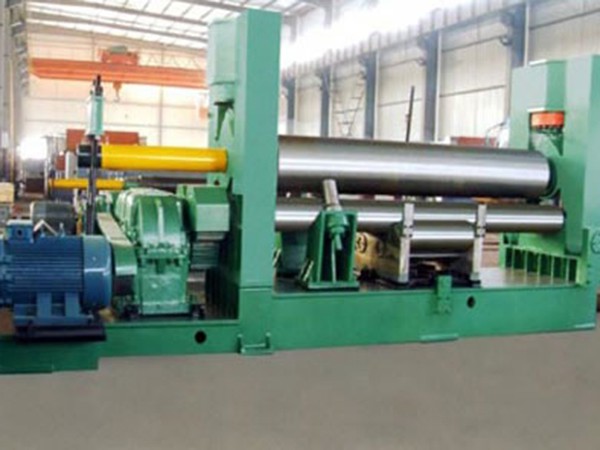

  • Plate Rolling Machine

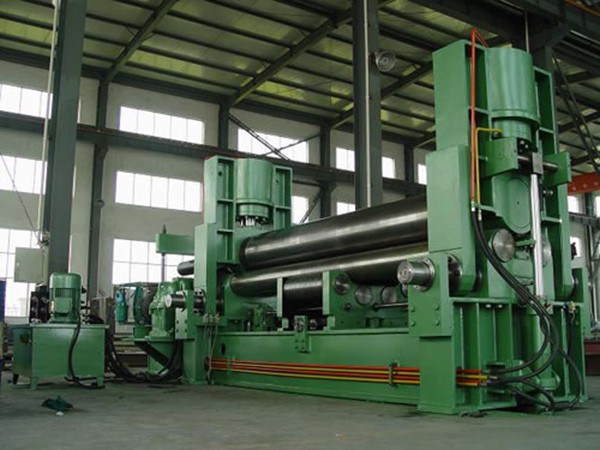

  • Plate Rolling Machine

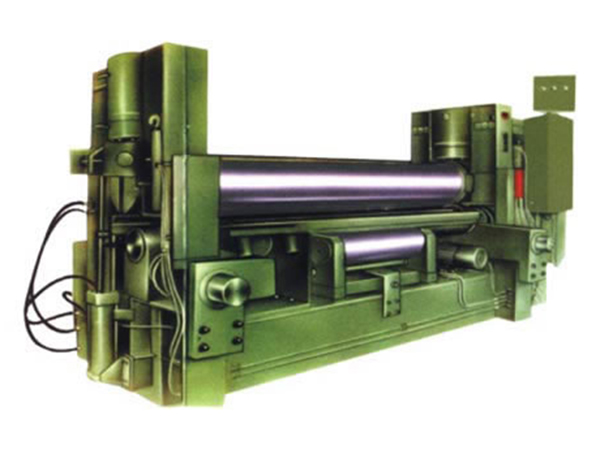

  • Plate Rolling Machine

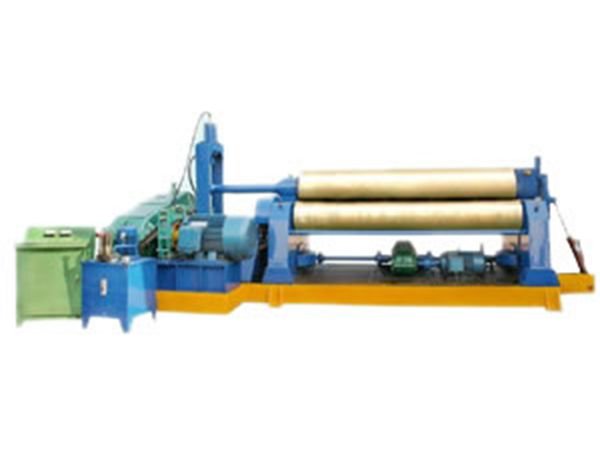

  • Plate Rolling Machine

Characteristics of W11 Mechanical 3-roller Symmetrical Plate Rolling Machine

  • W11 mechanical 3-roller symmetrical plate rolling machine is designed with three roller symmetrical structure.
  • With the transmission of lead screw, nut and worm, the upper roller moves vertically in the center between the two lower rollers.
  • The two lower rollers rotate and can provide torque for plate materials through the engagement of the output gear of speed reducer and the gear of the lower rollers.
  • This plate rolling machine has a compact structure and is easy to operate and maintain.
Parameters of W11 series Mechanical 3-roller Symmetrical Plate Rolling Machine
Specification Max. Thickness of Coiled Plate Max. Width of Coiled Plate Yielding Limit of Sheet Metal Coiling Speed Min. Full Loading Diameter of Coiled Plate Diameter of Top Shaft Diameter of Bottom Shaft Central Distance Between Bottom Shafts Main Motor Power
mm mm mm m/min mm mm mm mm kw
W11-4×1500 4 1500 245 5 300 150 140 185 3
W11-6×1500 6 1500 245 5 380 160 140 220 4
W11-6×2000 6 2000 245 4.5 380 170 160 260 5.5
W11-6×3200 6 3200 245 4.5 380 220 180 280 7.5
W11-8×2000 8 2000 245 4.5 400 185 170 260 5.5
W11-8×2500 8 2500 245 4.5 550 240 180 280 7.5
W11-12×2000 12 2000 245 4.5 550 240 180 280 7.5
W11-12×2500 12 2500 245 4.5 600 260 220 320 11
W11-12×3000 12 3000 245 4 700 280 240 360 11
W11-16×2000 16 2000 245 4 600 260 220 320 7.5
W11-16×2500 16 2500 245 4 700 280 240 360 11
W11-16×3000 16 3000 245 4 850 340 260 430 15
W11-20×2000 20 2000 245 4 700 280 240 360 11
W11-20×2500 20 2500 245 4 850 340 260 430 15
W11-25×2000 25 2000 245 4 850 330 270 430 15
W11-25×2500 25 2500 245 4 900 370 270 480 22
W11-30×2500 30 2500 245 4 1200 420 360 550 30
W11-30×3000 30 3000 245 4 1200 450 390 600 37

Characteristics of W11 Hydraulic 3-roller Symmetrical Plate Rolling Machine

  • W11 hydraulic 3-roller symmetrical plate rolling machine is designed with three roller symmetrical structure.
  • The hydraulic oil in hydraulic cylinder pushes the plunger to drive the upper roller moving vertically in the center between the two lower rollers.
  • The two lower rollers rotate and can provide torque for plate materials through the engagement of the output gear of speed reducer and the gear of the lower rollers.
  • This plate rolling machine has a compact structure and is easy to operate and maintain.
Parameters of W11 Hydraulic 3-roller Symmetrical Plate Rolling Machine
Specification Max. Thickness of Coiled Plate Max. Width of Coiled Plate Yielding Limit of Sheet Metal Coiling Speed Min. Full Loading Diameter of Coiled Plate Diameter of Top Shaft Diameter of Bottom Shaft Central Distance Between Bottom Shafts Main Motor Power Hydraulic Motor Power
mm mm mm m/min mm mm mm mm kw kw
W11Y-30×2000 30 2000 245 4 1200 360 290 480 22 7.5
W11Y-25×2500 25 2500 245 4 1200 370 300 480 22 7.5
W11Y-30×2500 30 2500 245 4 1200 420 360 550 30 11
W11Y-25×3000 25 3000 245 4 1200 430 370 550 30 11
W11Y-30×3000 30 3000 245 4 1200 450 390 600 30 11
W11Y-40×2500 40 2500 245 3.5 1400 500 400 600 37 15
W11Y-40×3000 40 3000 245 3.5 1600 540 440 600 45 18.5
W11Y-50×3000 50 3000 245 3.5 2000 580 480 750 55 22
W11Y-60×3000 60 3000 245 3.5 2400 660 560 800 75 30
W11Y-70×3000 70 3000 245 3.5 2800 710 620 850 90 37
W11Y-80×3000 80 3000 245 3.5 3200 770 680 900 90 37
W11Y-90×3000 90 3000 245 3.5 3600 820 730 950 110 45
W11Y-100×3000 100 3000 245 3.5 4000 860 770 1000 110 45
W11Y-110×3000 110 3000 245 3.5 4000 900 810 1080 132 55
W11Y-120×3000 120 3000 245 3.5 4800 950 860 1160 132 55

Characteristics of W11S series Upper Roller Universal Plate Rolling Machine

  • After you have set the length of straight flange freely, the upper roller can directly force on the ends of the materials to pre-bend them. This plate rolling machine provides high pre-bending accuracy.
  • Our upper roller universal plate rolling machine adopts NC control to ensure the high efficiency and easy operation.
  • The finished plate materials are of high precision. The upper roller which seems like a drum, together with lower rollers which has carrier rollers below, can process the sheet and thick boards into your desired products through continuously bending.
  • Since the two lower rollers are fixed and only the upper roller moves up and down, left and right, the plate materials will not move with the working rollers. So the safety of operators can be guaranteed.
  • Our plate rolling machine is designed as a whole, so it is quite convenient and easy to move the machine. No anchor bolt is needed.
  • According to different usages of plate materials, our plate rolling machine can carry out different control modes. TNC (upper NC) is applied in the condition that the required products are of many varieties and small quantity. T&BNC (upper, lower NC) is utilized in the condition that the required products are of few varieties and large quantity.
  • The plate materials can be process into O type, U type and multistage R type by our plate rolling machine. If the plate rolling machine is fitted with conical drum device, it can also be used to process materials into conical drum.
Parameters of High Precision Small Upper Roller Universal Plate Rolling Machine
Model Max. rolling thickness (mm) Max. pre-rolling thickness (mm) Max. Plate width (mm) Diameter of upper roller(mm) Diameter of lower roller(mm) Main motor power (kw)
for Driving for Hydraulic for Shift
W11SNC-12×2000 12 10 2000 250 145 4.5 4 1.1
W11SNC-14×2000 10 12 2000 250 145 5.5 4 1.1
W11SNC-15×2000 14 12 2000 250 150 5.5 4 1.1
W11SNC-16×2000 16 14 2000 255 150 7.5 4 1.1
W11SNC-16×2500 16 16 2500 300 165 15 4 1.1
W11SNC-17×2500 16 16 2500 300 180 15 5.5 1.5
W11SNC-18×3000 18 16 3000 350 180 15 5.5 1.5
W11SNC-20×2500 20 21 2500 330 180 15 5.5 1.5
W11SNC-20×3000 20 21 3000 375 200 18.5 5.5 2.2
W11SNC-25×2500 25 21 2500 380 220 22 5.5 2.2
W11SNC-25×3000 25 21 3000 425 235 30 7.5 2.2
W11SNC-25×3500 25 25 3500 440 235 30 7.5 2.2
W11SNC-25×6000 25 25 6000 630 300 45 7.5 2.2
W11SNC-30×2500 30 28 2500 410 235 30 7.5 4
W11SNC-30×3000 30 30 3000 450 250 37 7.5 4
W11SNC-32×3000 32 30 3000 480 260 37 7.5 4
W11SNC-35×2500 35 32 2500 460 260 37 11 4
W11SNC-35×3000 35 32 3000 510 275 45 11 4
W11SNC-40×2500 40 32 2500 500 275 45 11 4
Parameters of High Precision Large or Medium-Sized Upper Roller Universal Plate Rolling Machine
Model Max. rolling thickness (mm) Max. pre-rolling thickness(mm) Max. Plate width(mm) Diameter of upper roller(mm) Diameter of lower roller(mm) Main motor power (kw)
For Driving For Hydraulic For Shift
W11SNC-40×3000 40 50 4000 750 420 90 15 5.5
W11SNC-40×4000 40 55 5000 820 440 90 15 5.5
W11SNC-45×3000 45 55 3000 650 380 75 22 5.5
W11SNC-45×4000 45 60 4000 780 440 90 22 5.5
W11SNC-50×3000 50 60 4000 810 460 90 22 5.5
W11SNC-50×4000 50 65 3000 710 420 75 22 5.5
W11SNC-55×4000 55 70 4000 840 480 110 22 7.5
W11SNC-55×5000 55 70 3000 740 440 90 22 7.5
W11SNC-60×3000 60 75 3000 770 460 90 22 7.5
W11SNC-60×4000 60 85 4000 900 520 110 22 7.5
W11SNC-65×4000 65 85 3000 800 480 110 22 7.5
W11SNC-70×3000 70 95 3000 860 480 110 22 7.5
W11SNC-70×4000 70 100 4000 940 560 132 22 7.5
W11SNC-75×3000 75 110 4000 990 600 160 22 7.5
W11SNC-80×3000 80 120 3000 900 580 160 22 7.5
W11SNC-80×4000 80 130 3000 960 600 160 22 7.5
W11SNC-85×3000 85 140 3000 1080 650 2x90 22 7.5
Parameters of High Precision Large or Medium-Sized Upper Roller Universal Plate Rolling Machine
Model Max. rolling thickness(mm) Max .pre-rolling thickness(mm) Max. Plate width(mm) Diameter of upper roller(mm) Diameter of lower roller(mm) Main motor power (kw)
For Driving For Hydraulic For Shift
W11SNC-100×4000 100 100 4000 940 560 132 22 5.5
W11SNC-110×4000 110 110 4000 990 600 160 22 5.5
W11SNC-120×3000 120 120 3000 900 580 160 22 5.5
W11SNC-130×3000 130 130 3000 960 600 160 22 7.5
W11SNC-150×3000 150 150 3000 1080 650 2x90 22 7.5
W11SNC-160×4000 160 160 4000 1260 670 2x90 22 7.5
